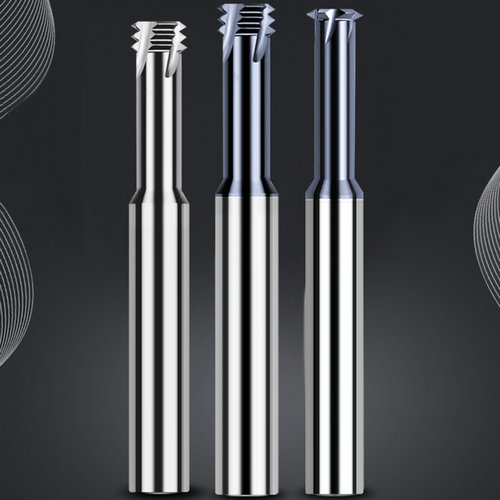

60 HRC Full-Tooth Carbide Thread Milling Tool
Helical Threading Cutter for Aluminum Steel
1. Threadmill Cutter Information:
-
Tool Type: Threading Milling Cutter for Metal.
-
Type: Full-Tooth Thread End Mill;
-
Materials: New Ultra-Fine Grain Tungsten Steel;
-
Thread Standard: Metric;
-
Pitch Type: Coarse / Fine;
-
Flute Numbers: 3/4 Flute;
-
HRC: 60°.
-
Uncoated Endmill Processing:
-
Profile aluminum, aluminum alloy, brass, copper, plastic, bakelite.
-
-
Coated Endmill Processing:
-
45# steel, stainless steel, titanium alloy, tool steel, carbon steel,
-
40CrMo, 42CrMo, chromium-molybdenum alloy steels, etc.
-
Applicable Equipment:
-
CNC machining center, precision cnc engraver, and other lathe.
2. Milling Bit Features:
(1) Ultra-Fine Grain Rod Material:
-
Selected tungsten steel, using a brand-new super ultra-fine grain rod as the tool substrate,
-
Not only provides high rigidity and excellent wear-resistance, but also
-
Ensures pressure resistance and explosion-proof capabilities,
-
Thereby offering a strong guarantee for its service lifetime.
(2) Nano Coating:
-
This coating is produced using high-density, wear-resistant coating technology,
-
Offering superior durability and greater hardness, which significantly extends the tool's service life.
(3) Large Chip-Removal Design:
-
Featuring fully-ground helix angles. The enlarged chip evacuation space minimizes chip accumulation,
-
Ensures smooth and burr-free chip-removal, and enhances cutting efficiency.
(4) Smooth Cutting:
-
Multiple rows of large helical flutes facilitate effortless chip evacuation,
-
Effectively prevent chip adhesion, enhance work efficiency, and
-
Produce threads with high precision and superior surface finish.
(5) High Quality:
-
Precision-ground cutting edges and a large core diameter enhance rigidity and toughness,
-
Delivering sharpness, durability, and extended tool life.
(6) Advantages of Choosing Full-Thread Mill:
-
Single-Pass Machining, High Efficiency
-
Advantage: Ideal for high-volume, high-efficiency thread machining.
-
Disadvantage: Fixed pitch, non-adjustable.

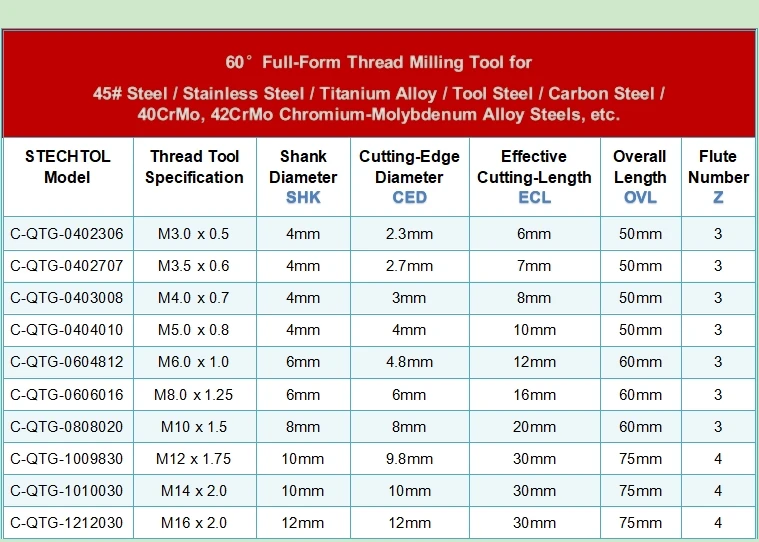

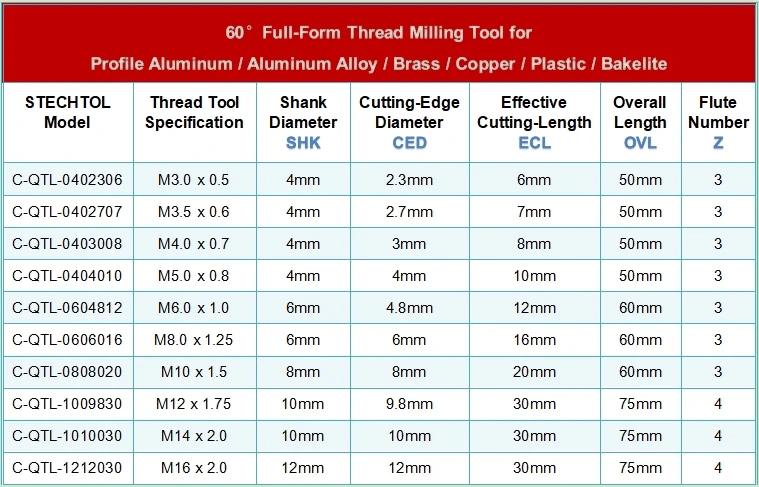

3. Metal Milling Cutter Specification:
