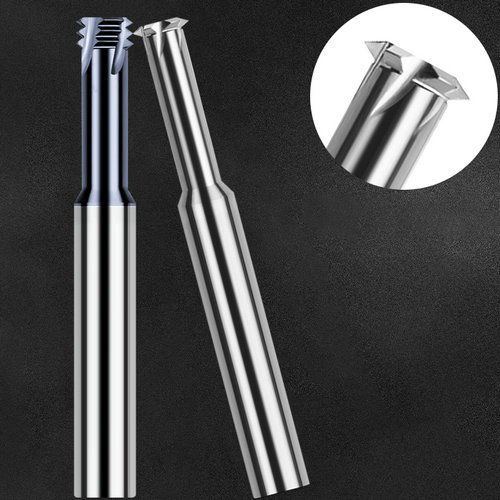

65 HRC 4 Flute Single-Tooth Thread Milling Cutter
for Steel Aluminum Metal Threading
1. Thread Milling Tool Information:
Tools Name: Threading Cutter
Type: Single-Tooth Thread End Mill
Materials: New Ultra-Fine Grain Tungsten Steel Carbide
Thread Standard: Metric
Pitch Type: Coarse / Fine
Flute Numbers: 4 Flute
HRC: 65°
Uncoated Tool Suitable for:
Aluminum, Aluminum Alloys, Copper, Plastics, Magnesium, Zinc, Acrylic, Bakelite, Resin, etc.
Coated Tool Suitable for:
Stainless Steel, Carbon Steel, Alloy Steel, Pre-hardened Steel, Quenched/Hardened Steel, Die Steel, Tool Steel, Titanium Alloy, Cast Iron, Non-ferrous Metals, etc.
Applicable Machinery:
CNC machining centers, precision carving machine, lathes, and other equipment.
2. Carbide Threadmill Features:
Ultra-Fine Grain Tungsten Steel Rod:
Utilizing innovative superfine grain structure as tool substrate,
Delivering exceptional rigidity, wear-resistance, presure tolerance and
Explosion-proof performance for maximized service lifetime.
Nano Coating:
Engineered through high-density, wear-resistant coating technology, to
Provide exceptional durability and enhanced hardness, substantially extending tool life.
Large Chip-Removal Groove Design:
Fully-ground helix angles for expanded chip space,
Preventing buildup and ensuring smooth evacuation to boost cutting efficiency.
Smooth Cutting:
Multiple-flute helical design ensures efficient chip removal, and
Prevents built-up edge, delivering high-precision threads with excellent surface finish and improved productivity.
High Quality:
Precision-ground edges, and large core diameter, increase rigidity and toughness,
Providing sharp and durable performance for extended tool life.

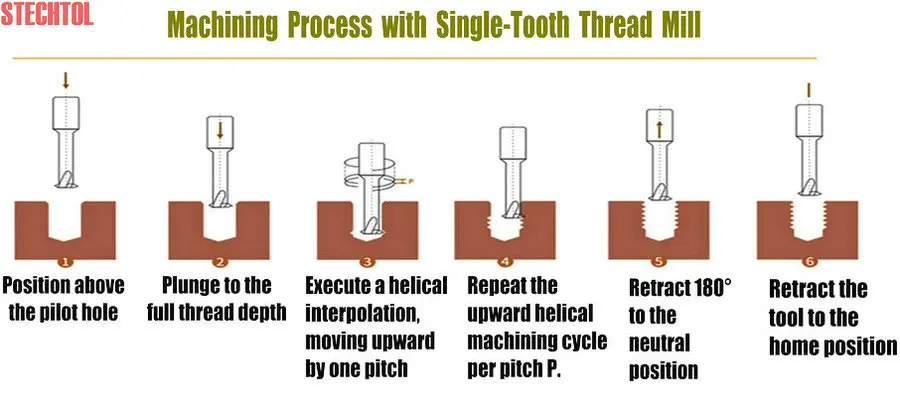

Advantages of Choosing Single-Thread Mills:
Cost-effective, highly versatile, and capable of machining a wide range of threads.
They can cut various pitches and are suitable for both internal and external threads on any straight-shank workpieces,
with no restrictions on thread hardness (left-handed or righ-handed)
Additionally, they enable threading of blind holes, significantly reducing procurement costs.

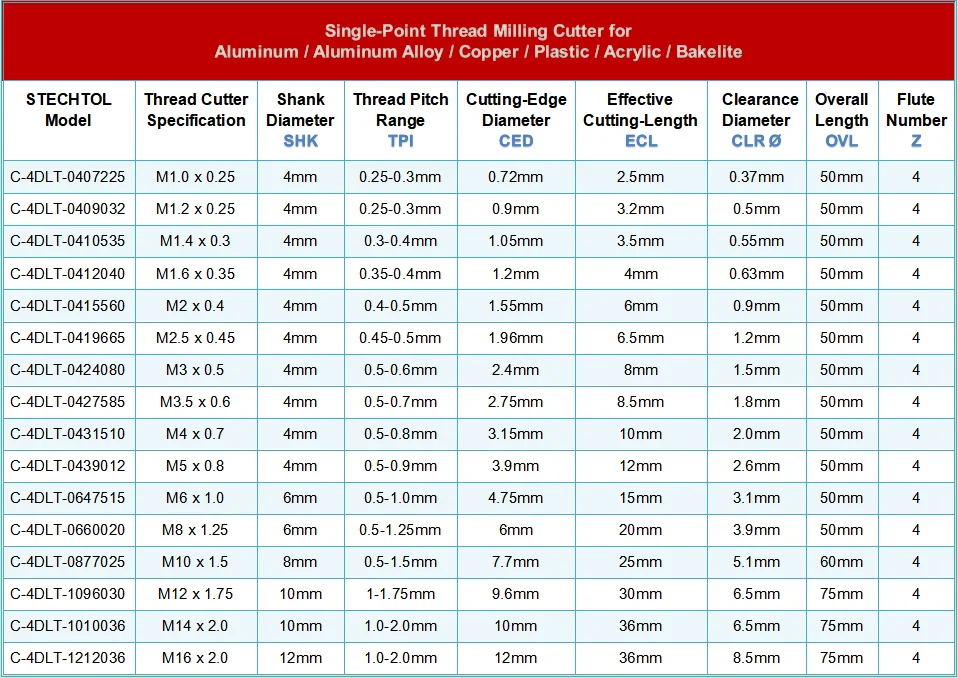

3. Router Bit Specifications:
4. CNC Cutter Parameters Setting
