6mm 3-Edge PCD Diamond Cutter
for Granite Stone Marble Engraving
Sharp Smooth Stone Artwork: Characters/Line Carving
High Precision, Hardness, Stability & Wear-resistance
Warm Notice:
-
The minimum order quantity is 3pcs, if the ordered quantities are less than 3pc, we will not arrange the tools shipment. Most thanks for your kind understanding!
1. Diamond Tool Information:
(1) Cutter Series: 3-Flute Diamond PCD Milling Cutter Bit;
(2) Production Materials: High-Quality PCD Diamond.
(4) Perfect for:
-
Fine characters engraving, thin line carving sculpturing, on:
-
Granite, marble, blue stones, etc.
2. PCD Bits Features:
(1) Selected diamond raw materials, the entire cutter is fine-machining.
(2) High quality blade, sharp cutting-edges, sturdy tool body.
(3) Vacuum precision welding, no solder detachment.
(4) Unexpectedly excellent carving performance, high working stability and efficiency, low noise.
(5) High toughness and durability, resistant to chipping; Complete specifications, longer life.

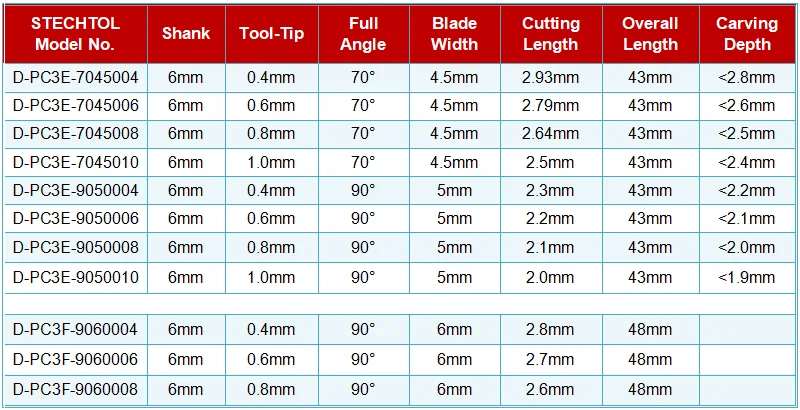

3. CNC Router Cutter Specification:
Precautions for Use:
-

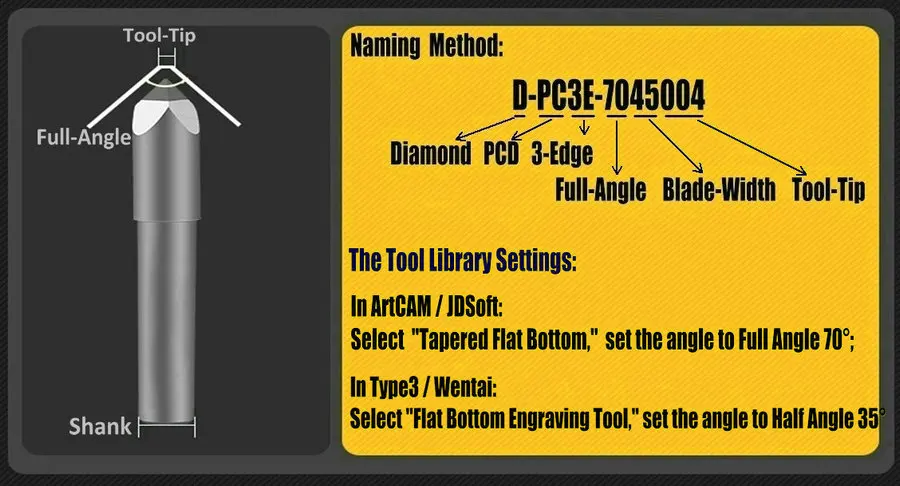

All cutting tools are named using the "full-angle system", and the angle filled in Wentai software is "half angle".
-
-
For example: D-PC3E-9050006
-
The Tool Library Settings are:
-
In ArtCAM / JDSoft: Select "Tapered Flat Bottom," set the angle to Full Angle 90°.
-
In Type3 / Wentai: Select "Flat Bottom Engraving Tool," set the angle to Half Angle 45°.
