5PCS 12.7x10mm Brazing Diamond Slotting Cutter
for Quartz Stones Slab Marble
Solid Strong Diamond Grains
Smooth Sharp Cut Surface with Fast Speed
High Intensity, Strength & Wear-resistance
1. Diamond Endmill Information:
(1) Tool Series:
-
Flat-Bottom Diamond Milling Cutter CNC Tools.
-
Four-Groove on the side.
(2) Production Materials: High-Class Diamond;
(3) Technology: Professional Smelting & Fusing Brazed;
(4) Engraving Cutter Suitable For:
-
Quartz stones, slab, slates, marble, countertop, etc.
-
Hole cutting, slotting, grooving, cutting, grinding, bottom-cleaning.
2. Milling Tool Features:
-
(1) Select high-quality emery diamond, sharper and stronger.
-
(2) New brazing technology, firmly attached to the matrix. No-breaking, no deforming.
-
(3) 4 slots on the side, smoother and easier chip-removal.
-
(4) Sharp stable efficient cutting processing, better working performance.
-
(5) High hardness, sharpness and durability. Long service lifetime.
-
(6) Suggested spindle speed: 12000-24000rpm. Actual processing speed: 150-200.

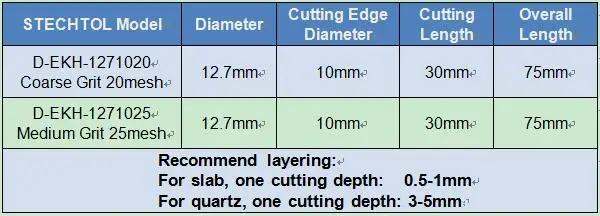

3. Cutting Bit Specifications:
-
Diameter: 0.5'' / 12.7mm;
-
Cutting-Edge Diameter: 0.394'' / 12.7mm;
-
Cutting-Edge Length: 1.181'' / 30mm;
-
Overall Length: 2.593'' / 75mm;
-
Packing Method: 5 pieces/set in strong box;
-
Condition: Brand-new & High-quality diamond slotting cutter tool!
